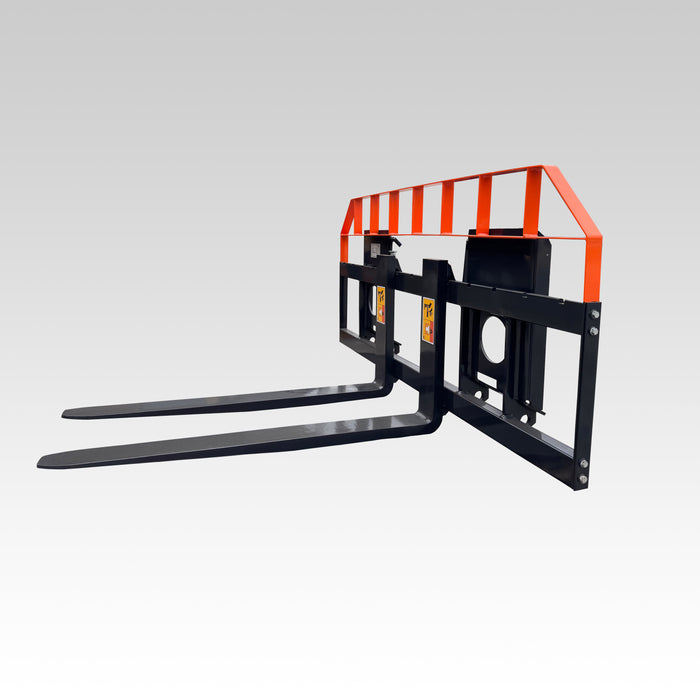

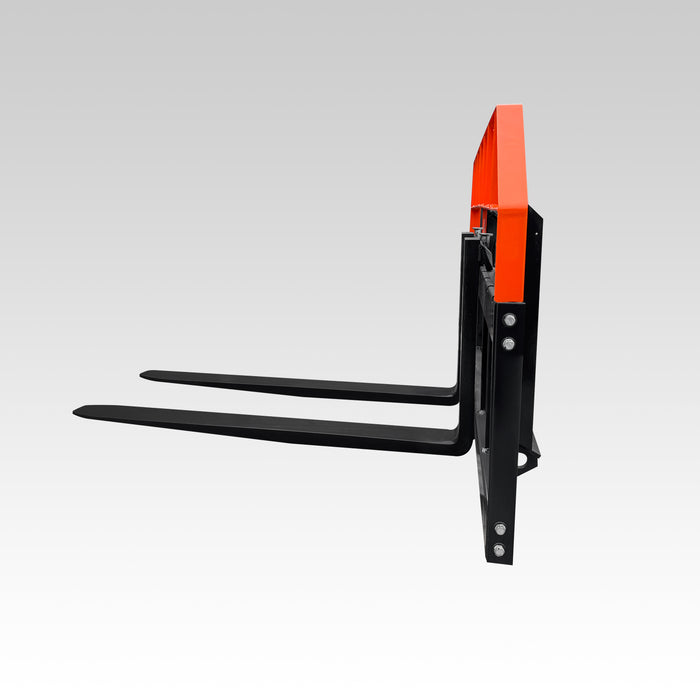

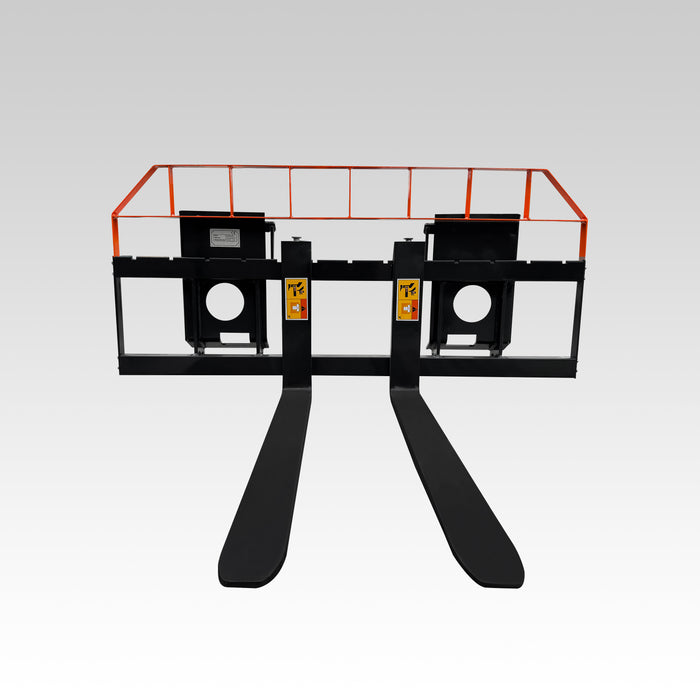

Sibom Skid Steer Lateral Fork, durable and high-strength materials, 2645 Ibs lifting capacity, lateral movement

Sibom Skid Steer Lateral Fork, durable and high-strength materials, 2645 Ibs lifting capacity, lateral movement

Save $200.00 Save $200.00
$2,799.00
$2,799.00 - $2,799.00
$2,799.00
$2,599.00
$2,599.00 - $2,599.00
$2,599.00
SKU spf48a
  • Hydraulic lateral movement ±10” for precise handling.
  • Fork spacing is adjustable from 2” to 50”, with a max lifting capacity of 2,645 lbs (1.2 tons).
  • Compatible with hydraulic systems requiring 8-10 GPM (30-40 L/min) flow and up to 3050 PSI.
  • Features simple hydraulic control for side-to-side movement and easy maintenance.
Product Feature
  1. The lateral movement is powered by a hydraulic cylinder controlled by the main engine, allowing easy left and right adjustments for optimal positioning.
  2. The simple operation and low-maintenance design ensure minimal downtime, improving overall productivity.

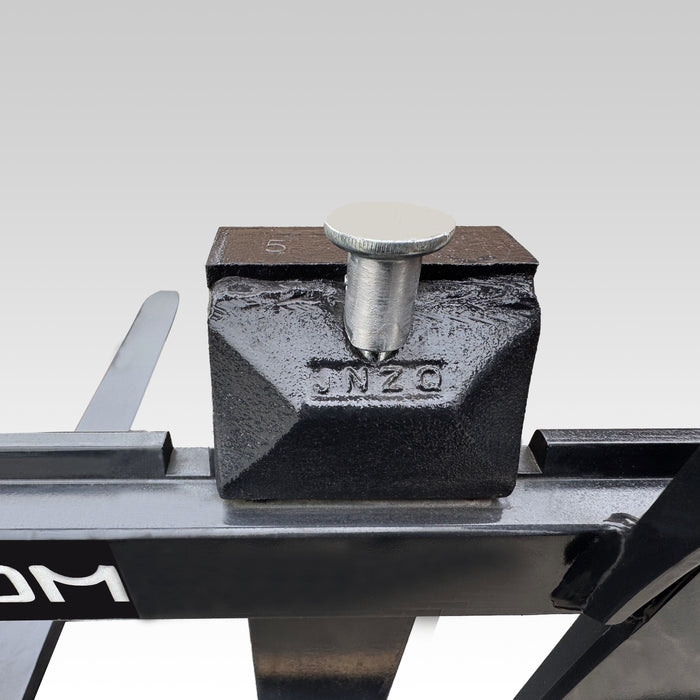

  3. It comes with customizable limit blocks that can be adjusted according to the loader type (bucket or small loader), providing compatibility with various host machines.
  4. It is engineered with high-strength materials to withstand heavy loads and rigorous working conditions.
Performance Introduction
  1. The lateral adjustment capability allows for precise material handling, ensuring accurate positioning and reducing errors during operations.
  2. The hydraulic control system enables smooth and rapid lateral movements, improving efficiency and minimizing the time spent on adjustments.
  3. The simple, intuitive control design reduces operator fatigue, making it easier to manage extended work hours.
  4. Designed to work seamlessly with various forklifts and small loaders, it adapts effortlessly to different host machines and operational scenarios.
  5. Built with durable, high-strength materials, the Lateral Fork can handle heavy-duty tasks and challenging working conditions without compromising performance.
Specifications
Model spf48a
Overall Length (in) 73
Overall Width (in) 51.7
Overall Height (in) 50.5
Theoretical Weight (lbs) 1000.9
Side Shift Distance (in) 0 - 14.1
Maximum Lifting Capacity (lbs) 2645.5
Fork Spacing (in) 10.1 - 44.9
Working Flow Rate (GPM) 7.9 - 10.6
Allowable Maximum Pressure (psi) 3045.8
Machine Configurations
Warranty We’re here to support you every step of the way. In addition to a 1-year manufacturer’s warranty, our dedicated customer service team is ready to assist with any questions, troubleshooting, or guidance you may need throughout your ownership experience.
