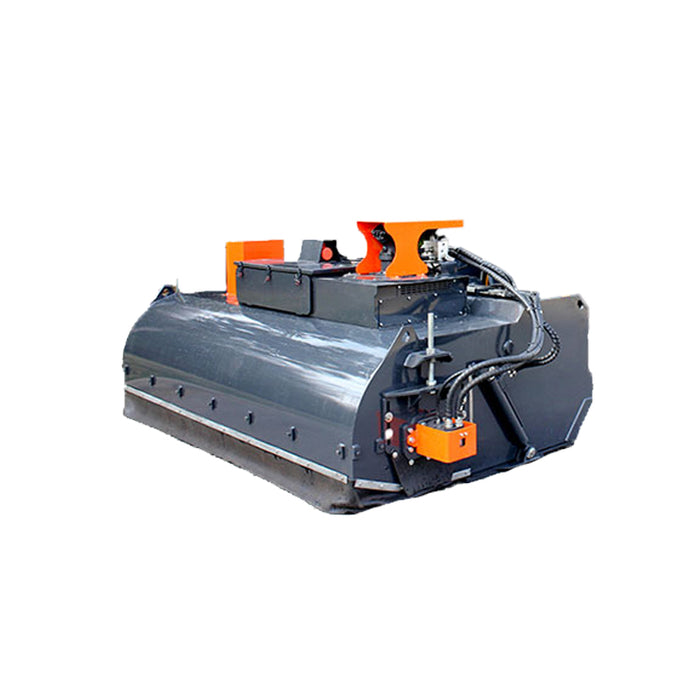

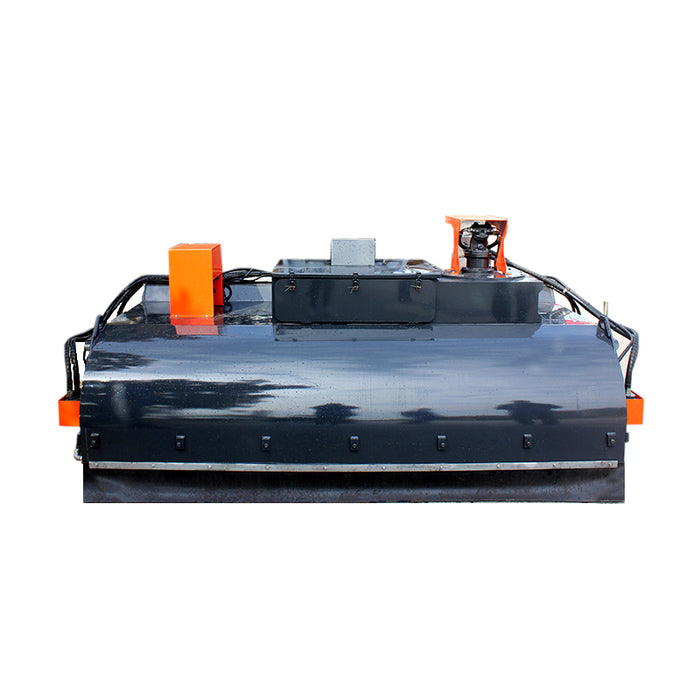

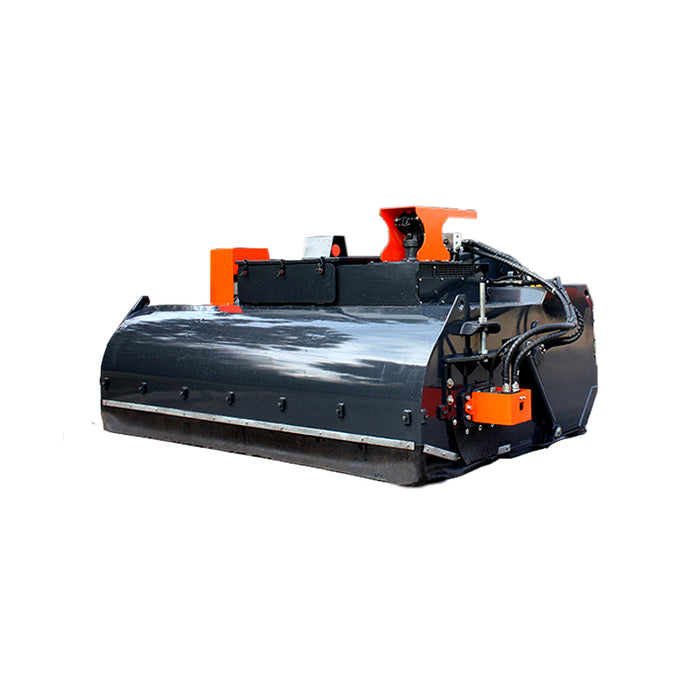

(缺价格)SIBOM Skid Steer Negative Pressure Dust Removal Cleaner, Hydraulic Drive, V-Type Filtration System, Universal Front Wheel Design

The Sibom Negative pressure dust removal cleaner is a set of equipment independently developed by a negative pressure dust removal system and closed cleaner by our company. Our company has the independent intellectual property rights of a negative pressure dust removal system. It can be simply installed on machines such as a slip loader. Can be used in many occasions, and can clean roads, factory areas, parking lots, docks, warehouses, ports and so on.

1. The negative pressure dust removal system forms a unique negative pressure wind cover firmly locks the dust raised in the cleaning process in the closed cleaning hopper, truly realizing the cleaning without dust leakage, dust, environmental protection and scientific dust cleaning.
2. Because the negative pressure dust removal system is not used to suppress dust, the filter does not need to be replaced frequently, greatly reducing the operation cost and workload; The filter adopts a V-shaped single-face washing fabric, aluminum alloy thickened frame, which is enough to adapt to the high corrosive complexity in port operation, increase the filter area and ensure the convenience and durability of the filter;
3. Use the double motor direct connection mode to drive the roller brush, high efficiency, clean;
4. The brush step-less adjustment, ensures that the brush can always maintain the minimum wear and clean the cleanest state;
5. Both sides of the sweeper is equipped with an unloading cylinder, hydraulic dump unloading, and one key automatic unloading in the cockpit, without shock bucket unloading, which greatly improves the service life, is simple and fast.
6. The sweeper is designed with a solid universal front wheel (400-8) to ensure the ride comfort and mobility of the sweeper, so that the loader can also operate when steering, to ensure the safety and service life of the tire. The front wheel is designed with shock prevention and seismic device, to ensure the safe operation of the sweeper in the uneven site, and to ensure the smooth rotation of the universal wheel of 360° in the case of heavy load.
7. The forward way of cleaning operation, operation safety, and high operation efficiency, greatly improve the safety of the operation, reduce the labor intensity of the operation, eliminate the backward operation of the body of the operator harm.
8. The front aggregate bucket is equipped with a new floating type of aggregate board, and the aggregate board can float with the terrain, greatly improving the cleaning effect of uneven site. The aggregate board is connected with bolts and hinge shafts and easy to replace.

1. The front round of universal organization

• Solid tires are more durable and safe
• A round set of shock absorbers and a universal device make it more practical

2. Negative pressure dust removal device

The dust generated in the cleaning process can be filtered through the filter element and then remove the function of dust removal

• Hydraulic plunger motor provides higher speed and greater dust removal capacity.
• The centrifugal fan impeller structure is simple and reasonable, providing greater air volume.
• An efficient filter adopts the V-type skeleton structure network, Providing a greater filtration and dust removal effect. The plunger motor

3. The sweeper is driven by hydraulic drive, that is, unloading the bottom plate of the hopper through the hydraulic cylinder, and at the same time, the dust discharge door in the negative pressure device is driven to act, so that the internal dust is dumped clean.

4. The power system of the cleaner drives the hydraulic control valve set to drive the roller brush for cleaning operation. The hydraulic motor adopts direct drive, which provides greater power and makes the disassembly and disassembly more fast and convenient. Hydraulic system control valve is a domestic first-line brand. All the controls are installed in the cab, and the driver can complete all the operations in the cab. Imported Italian fast joint equipped with dust cap, stable quality, easy to dismantle.

5. water vapor mass washing and sweeping technology

Set a nozzle at the front of the rolling brush to spray the water vapor evenly

To the rolling brush, through the rolling brush driven to form a round of water vapor, so as to achieve the effect of wet rolling brush

• The large volume water tank makes the sprinkling more continuous
• Automatic control of water level alarm technology
• The atomization nozzle makes for a more uniform spraying
